    Introduction
    ============

    This directory contains Device Tree overlays. Device Tree makes it possible
    to support many hardware configurations with a single kernel and without the
    need to explicitly load or blacklist kernel modules. Note that this isn't a
    "pure" Device Tree configuration (c.f. MACH_BCM2835) - some on-board devices
    are still configured by the board support code, but the intention is to
    eventually reach that goal.

    On Raspberry Pi, Device Tree usage is controlled from /boot/config.txt. By
    default, the Raspberry Pi kernel boots with device tree enabled. You can
    completely disable DT usage (for now) by adding:

        device_tree=

    to your config.txt, which should cause your Pi to revert to the old way of
    doing things after a reboot.

    In /boot you will find a .dtb for each base platform. This describes the
    hardware that is part of the Raspberry Pi board. The loader (start.elf and its
    siblings) selects the .dtb file appropriate for the platform by name, and reads
    it into memory. At this point, all of the optional interfaces (i2c, i2s, spi)
    are disabled, but they can be enabled using Device Tree parameters:

        dtparam=i2c=on,i2s=on,spi=on

    However, this shouldn't be necessary in many use cases because loading an
    overlay that requires one of those interfaces will cause it to be enabled
    automatically, and it is advisable to only enable interfaces if they are
    needed.

    Configuring additional, optional hardware is done using Device Tree overlays
    (see below).

    raspi-config
    ============

    The Advanced Options section of the raspi-config utility can enable and disable
    Device Tree use, as well as toggling the I2C and SPI interfaces. Note that it
    is possible to both enable an interface and blacklist the driver, if for some
    reason you should want to defer the loading.

    Modules
    =======

    As well as describing the hardware, Device Tree also gives enough information
    to allow suitable driver modules to be located and loaded, with the corollary
    that unneeded modules are not loaded. As a result it should be possible to
    remove lines from /etc/modules, and /etc/modprobe.d/raspi-blacklist.conf can
    have its contents deleted (or commented out).

    Using Overlays
    ==============

    Overlays are loaded using the "dtoverlay" directive. As an example, consider the
    popular lirc-rpi module, the Linux Infrared Remote Control driver. In the
    pre-DT world this would be loaded from /etc/modules, with an explicit
    "modprobe lirc-rpi" command, or programmatically by lircd. With DT enabled,
    this becomes a line in config.txt:

        dtoverlay=lirc-rpi

    This causes the file /boot/overlays/lirc-rpi-overlay.dtb to be loaded. By
    default it will use GPIOs 17 (out) and 18 (in), but this can be modified using
    DT parameters:

        dtoverlay=lirc-rpi,gpio_out_pin=17,gpio_in_pin=13

    Parameters always have default values, although in some cases (e.g. "w1-gpio")
    it is necessary to provided multiple overlays in order to get the desired
    behaviour. See the list of overlays below for a description of the parameters and their defaults.

    The Overlay and Parameter Reference
    ===================================

    Name:   <The base DTB>
    Info:   Configures the base Raspberry Pi hardware
    Load:   <loaded automatically>
    Params:

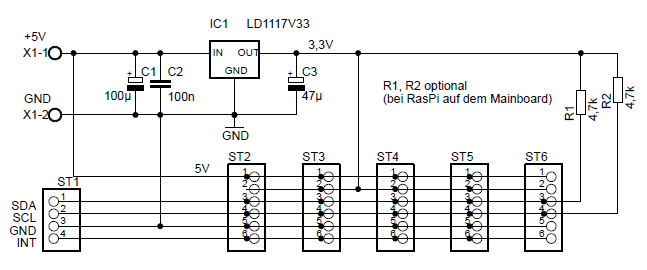

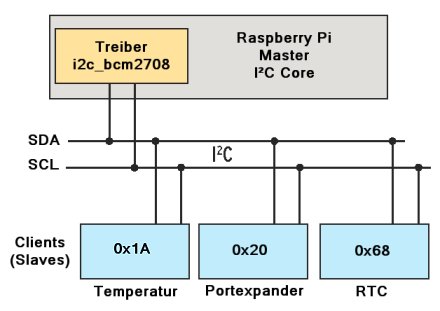

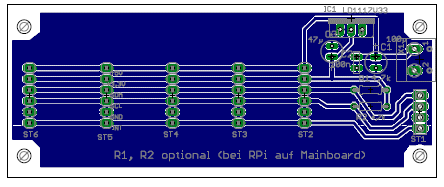

            i2c_arm                  Set to "on" to enable the ARM's i2c interface
                                     (default "off")

            i2c_vc                   Set to "on" to enable the i2c interface
                                     usually reserved for the VideoCore processor
                                     (default "off")

            i2c                      An alias for i2c_arm

            i2c_arm_baudrate         Set the baudrate of the ARM's i2c interface
                                     (default "100000")

            i2c_vc_baudrate          Set the baudrate of the VideoCore i2c interface
                                     (default "100000")

            i2c_baudrate             An alias for i2c_arm_baudrate

            i2s                      Set to "on" to enable the i2s interface
                                     (default "off")

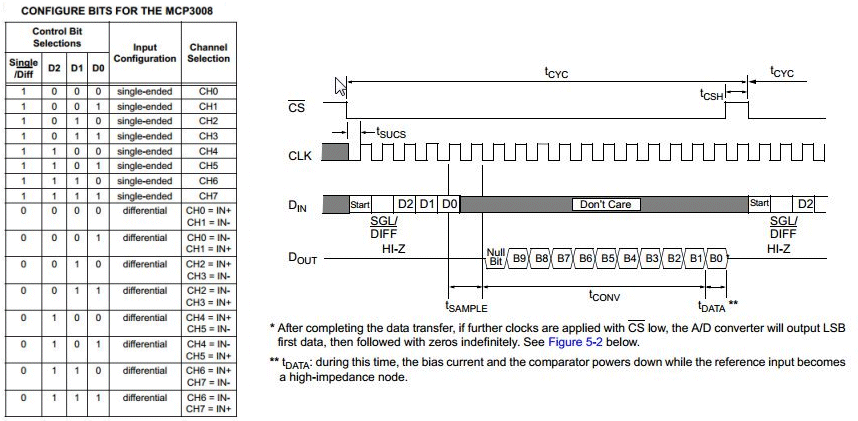

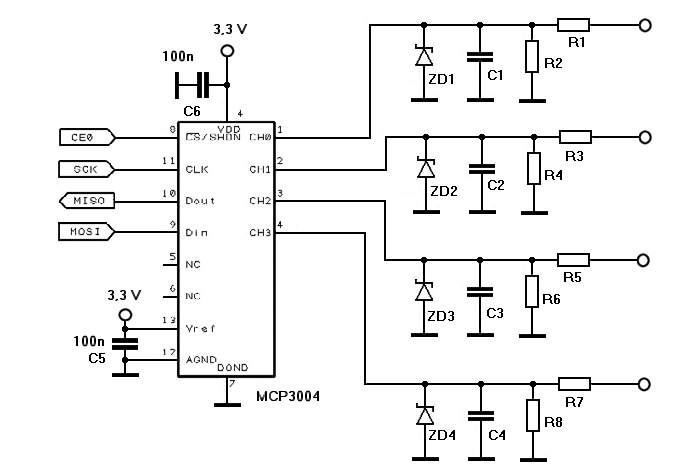

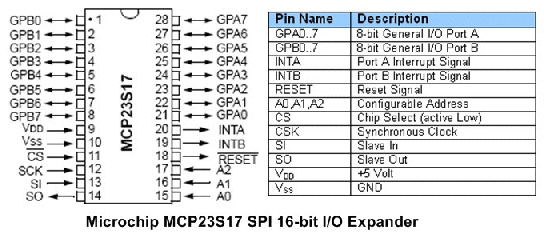

            spi                      Set to "on" to enable the spi interfaces
                                     (default "off")

            act_led_trigger          Choose which activity the LED tracks.
                                     Use "heartbeat" for a nice load indicator.
                                     (default "mmc")

            act_led_activelow        Set to "on" to invert the sense of the LED
                                     (default "off")

            act_led_gpio             Set which GPIO to use for the activity LED
                                     (in case you want to connect it to an external
                                     device)
                                     (default "16" on a non-Plus board, "47" on a
                                     Plus or Pi 2)

            pwr_led_trigger
            pwr_led_activelow
            pwr_led_gpio
                                     As for act_led_*, but using the PWR LED.
                                     Not available on Model A/B boards.

            N.B. It is recommended to only enable those interfaces that are needed.
            Leaving all interfaces enabled can lead to unwanted behaviour (i2c_vc
            interfering with Pi Camera, I2S and SPI hogging GPIO pins, etc.)
            Note also that i2c, i2c_arm and i2c_vc are aliases for the physical
            interfaces i2c0 and i2c1. Use of the numeric variants is still possible
            but deprecated because the ARM/VC assignments differ between board
            revisions. The same board-specific mapping applies to i2c_baudrate,
            and the other i2c baudrate parameters.


    Name:   ads7846
    Info:   ADS7846 Touch controller
    Load:   dtoverlay=ads7846,<param>=<val>
    Params: cs                       SPI bus Chip Select (default 1)
            speed                    SPI bus speed (default 2Mhz, max 3.25MHz)
            penirq                   GPIO used for PENIRQ. REQUIRED
            penirq_pull              Set GPIO pull (default 0=none, 2=pullup)
            swapxy                   Swap x and y axis
            xmin                     Minimum value on the X axis (default 0)
            ymin                     Minimum value on the Y axis (default 0)
            xmax                     Maximum value on the X axis (default 4095)
            ymax                     Maximum value on the Y axis (default 4095)
            pmin                     Minimum reported pressure value (default 0)
            pmax                     Maximum reported pressure value (default 65535)
            xohms                    Touchpanel sensitivity (X-plate resistance)
                                     (default 400)

            penirq is required and usually xohms (60-100) has to be set as well.
            Apart from that, pmax (255) and swapxy are also common.
            The rest of the calibration can be done with xinput-calibrator.
            See: github.com/notro/fbtft/wiki/FBTFT-on-Raspian
            Device Tree binding document:
            www.kernel.org/doc/Documentation/devicetree/bindings/input/ads7846.txt


    Name:   bmp085_i2c-sensor
    Info:   Configures the BMP085/BMP180 digital barometric pressure and temperature
            sensors from Bosch Sensortec
    Load:   dtoverlay=bmp085_i2c-sensor
    Params: <None>


    [ The ds1307-rtc overlay has been deleted. See i2c-rtc. ]


    Name:   enc28j60
    Info:   Overlay for the Microchip ENC28J60 Ethernet Controller (SPI)
    Load:   dtoverlay=enc28j60,<param>=<val>
    Params: int_pin                  GPIO used for INT (default 25)

            speed                    SPI bus speed (default 12000000)


    Name:   hifiberry-amp
    Info:   Configures the HifiBerry Amp and Amp+ audio cards
    Load:   dtoverlay=hifiberry-amp
    Params: <None>


    Name:   hifiberry-dac
    Info:   Configures the HifiBerry DAC audio card
    Load:   dtoverlay=hifiberry-dac
    Params: <None>


    Name:   hifiberry-dacplus
    Info:   Configures the HifiBerry DAC+ audio card
    Load:   dtoverlay=hifiberry-dacplus
    Params: <None>


    Name:   hifiberry-digi
    Info:   Configures the HifiBerry Digi audio card
    Load:   dtoverlay=hifiberry-digi
    Params: <None>


    Name:   hy28a
    Info:   HY28A - 2.8" TFT LCD Display Module by HAOYU Electronics
            Default values match Texy's display shield
    Load:   dtoverlay=hy28a,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            xohms                    Touchpanel sensitivity (X-plate resistance)

            resetgpio                GPIO used to reset controller

            ledgpio                  GPIO used to control backlight


    Name:   hy28b
    Info:   HY28B - 2.8" TFT LCD Display Module by HAOYU Electronics
            Default values match Texy's display shield
    Load:   dtoverlay=hy28b,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            xohms                    Touchpanel sensitivity (X-plate resistance)

            resetgpio                GPIO used to reset controller

            ledgpio                  GPIO used to control backlight


    Name:   i2c-rtc
    Info:   Adds support for a number of I2C Real Time Clock devices
    Load:   dtoverlay=i2c-rtc,<param>
    Params: ds1307                   Select the DS1307 device

            ds3231                   Select the DS3231 device

            pcf2127                  Select the PCF2127 device

            pcf8523                  Select the PCF8523 device

            pcf8563                  Select the PCF8563 device


    Name:   iqaudio-dac
    Info:   Configures the IQaudio DAC audio card
    Load:   dtoverlay=iqaudio-dac
    Params: <None>


    Name:   iqaudio-dacplus
    Info:   Configures the IQaudio DAC+ audio card
    Load:   dtoverlay=iqaudio-dacplus
    Params: <None>


    Name:   lirc-rpi
    Info:   Configures lirc-rpi (Linux Infrared Remote Control for Raspberry Pi)
            Consult the module documentation for more details.
    Load:   dtoverlay=lirc-rpi,<param>=<val>,...
    Params: gpio_out_pin             GPIO for output (default "17")

            gpio_in_pin              GPIO for input (default "18")

            gpio_in_pull             Pull up/down/off on the input pin
                                     (default "down")

            sense                    Override the IR receive auto-detection logic:
                                       "1" = force active high
                                       "0" = force active low
                                       "-1" = use auto-detection
                                     (default "-1")

            softcarrier              Turn the software carrier "on" or "off"
                                     (default "on")

            invert                   "on" = invert the output pin (default "off")

            debug                    "on" = enable additional debug messages
                                     (default "off")


    Name:   mcp2515-can0
    Info:   Configures the MCP2515 CAN controller
    Load:   dtoverlay=mcp2515-can0,<param>=<val>
    Params: oscillator               Clock frequency for the CAN controller (Hz)

            spimaxfrequency          Maximum SPI frequence (Hz)

            interrupt                GPIO for interrupt signal


    Name:   mmc
    Info:   Selects the bcm2835-mmc SD/MMC driver, optionally with overclock
    Load:   dtoverlay=mmc,<param>=<val>
    Params: overclock_50             Clock (in MHz) to use when the MMC framework
                                     requests 50MHz
            force_pio                Disable DMA support


    Name:   mz61581
    Info:   MZ61581 display by Tontec
    Load:   dtoverlay=mz61581,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            xohms                    Touchpanel sensitivity (X-plate resistance)


    [ The pcf2127-rtc overlay has been deleted. See i2c-rtc. ]


    [ The pcf8523-rtc overlay has been deleted. See i2c-rtc. ]


    [ The pcf8563-rtc overlay has been deleted. See i2c-rtc. ]


    Name:   piscreen
    Info:   PiScreen display by OzzMaker.com
    Load:   dtoverlay=piscreen,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            xohms                    Touchpanel sensitivity (X-plate resistance)


    Name:   pitft28-resistive
    Info:   Adafruit PiTFT 2.8" resistive touch screen
    Load:   dtoverlay=pitft28-resistive,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}


    Name:   pps-gpio
    Info:   Configures the pps-gpio (pulse-per-second time signal via GPIO).
    Load:   dtoverlay=pps-gpio,<param>=<val>
    Params: gpiopin                  Input GPIO (default "18")


    Name:   rpi-dac
    Info:   Configures the RPi DAC audio card
    Load:   dtoverlay=rpi-dac
    Params: <None>


    Name:   rpi-display
    Info:   RPi-Display - 2.8" Touch Display by Watterott
    Load:   dtoverlay=rpi-display,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            xohms                    Touchpanel sensitivity (X-plate resistance)


    Name:   rpi-proto
    Info:   Configures the RPi Proto audio card
    Load:   dtoverlay=rpi-proto
    Params: <None>


    Name:   sdhost
    Info:   Selects the bcm2835-sdhost SD/MMC driver, optionally with overclock
    Load:   dtoverlay=sdhost,<param>=<val>
    Params: overclock_50             Clock (in MHz) to use when the MMC framework
                                     requests 50MHz
            force_pio                Disable DMA support


    Name:   spi-bcm2835
    Info:   Selects the bcm2835-spi SPI driver
    Load:   dtoverlay=spi-bcm2835
    Params: <None>


    Name:   tinylcd35
    Info:   3.5" Color TFT Display by www.tinlylcd.com
            Options: Touch, RTC, keypad
    Load:   dtoverlay=tinylcd35,<param>=<val>
    Params: speed                    Display SPI bus speed

            rotate                   Display rotation {0,90,180,270}

            fps                      Delay between frame updates

            debug                    Debug output level {0-7}

            touch                    Enable touch panel

            touchgpio                Touch controller IRQ GPIO

            xohms                    Touchpanel: Resistance of X-plate in ohms

            rtc-pcf                  PCF8563 Real Time Clock

            rtc-ds                   DS1307 Real Time Clock

            keypad                   Enable keypad

            Examples:
                Display with touchpanel, PCF8563 RTC and keypad:
                    dtoverlay=tinylcd35,touch,rtc-pcf,keypad
                Old touch display:
                    dtoverlay=tinylcd35,touch,touchgpio=3


    Name:   w1-gpio
    Info:   Configures the w1-gpio Onewire interface module.
            Use this overlay if you *don't* need a GPIO to drive an external pullup.
    Load:   dtoverlay=w1-gpio,<param>=<val>
    Params: gpiopin                  GPIO for I/O (default "4")

            pullup                   Non-zero, "on", or "y" to enable the parasitic
                                     power (2-wire, power-on-data) feature


    Name:   w1-gpio-pullup
    Info:   Configures the w1-gpio Onewire interface module.
            Use this overlay if you *do* need a GPIO to drive an external pullup.
    Load:   dtoverlay=w1-gpio-pullup,<param>=<val>,...
    Params: gpiopin                  GPIO for I/O (default "4")

            pullup                   Non-zero, "on", or "y" to enable the parasitic
                                     power (2-wire, power-on-data) feature

            extpullup                GPIO for external pullup (default "5")

    File:   w1-gpio-overlay.dtb
    Info:   Configures the w1-gpio Onewire interface module.
            Use this overlay if you *don't* need a pin to drive an external pullup.
    Load:   dtoverlay=w1-gpio,<param>=<val>
    Params: gpiopin                  GPIO pin for I/O (default "4")

            pullup                   Non-zero, "on", or "y" to enable the parasitic
                                     power (2-wire, power-on-data) feature


    File:   w1-gpio-pullup-overlay.dtb
    Info:   Configures the w1-gpio Onewire interface module.
            Use this overlay if you *do* need a pin to drive an external pullup.
    Load:   dtoverlay=w1-gpio-pullup,<param>=<val>,...
    Params: gpiopin                  GPIO pin for I/O (default "4")

            pullup                   Non-zero, "on", or "y" to enable the parasitic
                                     power (2-wire, power-on-data) feature

            extpullup                GPIO pin for external pullup (default "5")

    This update separates the external pullup enable pin ("extpullup") and the
    parasitic power ("pullup") features of the driver, which had become conflated.
    But the most significant change is the fix to the pinctrl driver that makes
    it all work with Device Tree.

    Troubleshooting
    ===============

    If you are experiencing problems that you think are DT-related, enable DT
    diagnostic output by adding this to /boot/config.txt:

        dtdebug=on

    and rebooting. Then run:

        sudo vcdbg log msg

    and look for relevant messages.

    Further reading
    ===============

    This is only meant to be a quick introduction to the subject of Device Tree on
    Raspberry Pi. There is a more complete explanation here:

    http://www.raspberrypi.org/documentation/configuration/device-tree.md
